Tech Spec Sheets

OPTIGO CONNECT SPECTRA

Spectra Solution

Optigo Connect Spectra

PRODUCT HIGHLIGHTS

  • Single pane of glass network management lets users configure all network ports from a single interface.
  • OneClick Secure means users can secure the entire network with the click of a button.
  • Advanced Device-Loop Management to manage and secure loops of IP devices.
  • Flexible building network to match any building’s footprint.
  • Efficient building network with reduced cabling and increased reach.

DESCRIPTION

The Internet of Things is happening — now. All systems for a modern smart building are based on IP connectivity, and this means new networking requirements. Optigo Networks recognizes that traditional networking solutions are simply not appropriate for building networks.

Optigo Connect Spectra is an efficient and flexible network that fits any smart building and reduces cabling cost while increasing reach. Optigo OneViewTM allows the entire network to be monitored and managed in a single graphical view.

OPTIGO CONNECT HYBRID

Hybrid Solution

Optigo Connect Hybrid

PRODUCT HIGHLIGHTS

  • Flexibility to use any cabling, whether multi-mode, copper Ethernet, or a mixed solution.
  • User-friendly interface involves zero text commands to set up, manage, or commission the network.
  • Auto-recognition gets Edge Switches online right away, as soon as you plug them in.
  • Minimal IT training required to manage the network.
  • Single pane of glass network management lets users configure all network ports from a single interface.

DESCRIPTION

Optigo Connect Hybrid takes all buildings into the 21st century, with a single pane of glass view for networks running on copper, multi-mode fiber, or mixed cabling.

Flexible design makes it easy to start with a piece of the Optigo solution and grow over time. Put Optigo Connect into every building, regardless of the need for a single standalone switch, a few switches on a copper network, or a large fiber network. Whether a small or large, new or retrofit project, any building can benefit from this smart building network platform.

NETWORK CONTROLLER

ONS-NC600 with OneView™

Optigo Network Controller ONS-NC600 OneView

PRODUCT HIGHLIGHTS

  • View tens to thousands of ports in a simple interface, with responsive search filters and sorting functions
  • Power cycle any devices powered by Power-over-Ethernet such as IP cameras right from a VMS
  • Name and color code VLANs, to easily organize and identify which devices belong on which VLANs
  • Secure the entire network at the click of a button, with OneClick Secure. Close all open ports, and lock used ports to the applicable MAC address.

DESCRIPTION

Our management interface, the Network Controller with Optigo OneView, allows you to manage your entire network from one place. Quickly and easily see the status of your ports, know how much bandwidth you are using, and configure VLANs. OneClick Secure allows you to close all open ports and lock used ports to the applicable MAC address with the click of a button. Optigo OneView gives you unique visibility into your building network.

SPECTRA AGGREGATION SWITCH

ONS-S8

ONS-S8

PRODUCT HIGHLIGHTS

  • Centrally manage your entire network with built-in OneView™ Dashboard
  • Create a single virtual switch with scalable distributed ports
  • Supports all protocols in use for Security and Building Automation
  • Innovative Redundancy achieved with auto-switching Active/Standby

DESCRIPTION

Our Spectra Aggregation Switch is designed specifically for deploying passive optical networking in intelligent buildings. It allows you to create a single virtual switch with up to 1028 distributed ports, and centrally monitor and manage your entire network with a built-in OneView Dashboard. Our Spectra Aggregation Switch supports all protocols in use for security and building automation, and easily achieves redundancy with its auto-switching Active/Standby feature.

EDGE SWITCHES

ONS-CX

Optigo Networks Edge Switch Family ONS-CX

PRODUCT HIGHLIGHTS

  • A versatile selection of Edge Switches – with various sizes and mounting options, there is one for any application
  • Flexible uplink architecture with Optigo’s passive optical networking
  • Create a single virtual switch with up to 1028 distributed ports
  • Centrally manage PoE and VLAN settings with Optigo’s OneView™ Dashboard

DESCRIPTION

Our versatile line of managed Edge Switches are engineered to meet any challenge in building automation and security. With various size, mounting and environmental options, our switches can be installed anywhere from a control room to a utility pole. All PoE and VLAN settings are centrally managed from Optigo’s OneView dashboard, allowing complete monitoring and control from one comfortable location.

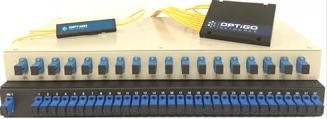

PASSIVE OPTICAL SPLITTERS

ONS-YX

ONS-YX

PRODUCT HIGHLIGHTS

  • Optimize cabling throughout your smart building by running a single fiber – just split it where you need to
  • Passive splitters require no power, no climate control, and no maintenance whatsoever
  • A wide selection of splitters enables a variety of flexible and expandable architectures – both with and without redundancy
  • Available in rack-mount or compact form factors for deployment in any environment

DESCRIPTION

Connect Spectra's Passive Optical Splitters allow you to optimize the cabling throughout your intelligent building. Simply run a single fiber and split it wherever you need – without the use of power, climate control or maintenance. A wide selection of splitters enables a variety of flexible and expandable architectures, enabling your network to reach up to 20km (12.5 miles) while reducing cabling costs up to 80%.

TRANSCEIVER PLUG-INS

SFPs

Optigo Connect ONS-CX-SFP and ONS-SX-SFP

PRODUCT HIGHLIGHTS

  • Compatible with Optigo's Edge Switches or Aggregation Switches
  • Single fiber, full duplex operation
  • “Plug and play” auto-discovery and configuration
  • Transmits and receives data over single-mode fiber.

DESCRIPTION

Optigo Connect’s transceiver plug-ins achieve high-speed communications for single-mode fiber, multi-mode fiber, copper Ethernet, and mixed cabling networks. These small form-factor pluggable transceivers (SFPs) plug into the Aggregation and Edge Switches’ SFP ports, then connect to the cabling.

VISUAL BACNET

BACnet Analytics

VisualBACNet

PRODUCT HIGHLIGHTS

  • Troubleshoot: Fix that pesky router you regularly reset, or the network that is painfully slow.
  • Monitor: Ensure your network stays healthy, and receive alerts when the network health drops.
  • Service: Provide regular health reports, and solve customers’ problems faster.

DESCRIPTION

Visual BACnet™ is an advanced visualization tool to help you gain insight into the health of your building automation system (BAS) deployments.Visual BACnet™ is the perfect tool for Field Service Technicians and Maintenance and Facilities Operators  who struggle to make sense of BACnet capture files. Utilizing an advanced and easy-to-understand dashboard, service providers can quickly and easily troubleshoot configuration issues to fix the problem in minutes, not days.

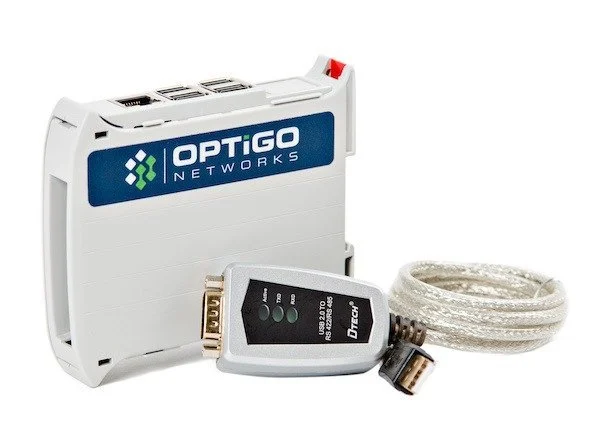

VISUAL BACNET CAPTURE TOOL

CT-BAC

BCT-Ethernet

PRODUCT HIGHLIGHTS

  • Automatically capture data from IP and MS/TP networks on an ongoing basis
  • Pinpoint intermittent and ongoing problems throughout your network
  • Upload to Visual BACnet or accumulate captures for when an internet connection is available
  • Receive alerts when your Network Health changes, and diagnose the problem from anywhere

DESCRIPTION

Our Visual BACnet Capture Tools allow you to easily capture BACnet IP and BACnet MS/TP traffic throughout your network. Schedule regular captures on any network or subnet, and they'llautomatically upload to Visual BACnet on an ongoing basis. There, network changes are quickly identified and notifications will alert you of any problems. The Visual BACnet Capture Tools allow you to monitor every subnet in your BACnet system.

Optigo Quote

With Optigo Connect, the network is now flexible and strong, able to support a multitude of systems with ease and performing better than ever.

– Hendra Hugraha, National Engineering Manager, Delta Building Automation
