Introduction to networking

Optigo Networks Distech Controls Introduction to Networking
A guide to IT networking, for OT professionals

Do you struggle to communicate with your IT colleagues? Do they use concepts and language that go right over your head?

The worlds of IT and Operational Technology (OT) are merging more and more these days as the Internet of Things grows in prominence. This collaboration between IT and OT is great, but there are still gaps in understanding that keep us from fully working together.

We recently teamed up with Distech Controls to create an introduction to networking on the essentials of IT speak. We dug into key terms and concepts in IT networking, and explained why networking’s similar to the postal system. Our attendees left with a base understanding of IT language, enabling them to participate in overall network design conversations.

Now, this intro to networking is only the beginning. Working on this webinar, we realized that we couldn’t fit such a massive topic into just one webinar. So we’re launching a five-part series with Distech, to really dig into networking. Over the next few months, we’ll dive into Network Access, Internet, Transport and Application, and Designing a Network with Distech Controls’ ECLYPSE and Optigo Connect. You can register for all of them, or pick and choose what interests you. Learn more and register!

For now, check out our first Introduction to Networking webinar and read the recap here!

The webinar dug into a lot of different topics including:

  • Network Layers (from 3:00 to 11:40)
  • Network Access (from 11:41 to 26:34)
    • Ethernet
    • Wi-Fi
    • Unmanaged vs. Managed Switches
    • VLAN
  • Internet (from 26:35 to 47:56)
    • IPv4
    • DHCP
    • Subnet
    • Gateway and NAT
    • IP Routing
    • DNS
    • Firewall and VPN
  • Transport & Application (from 47:57 to 50:49)
    • Transport Layer
    • TCP
    • UDP
    • Application Layer
    • Protocols

Network Layers

We started our presentation by dividing the network into several distinct layers. Now, there are a few different models you can use to better understand the network architecture. These have no real bearing on how your network’s set up. The models are simply a logical way to understand how the different pieces function.

One popular model is OSI, which uses seven different layers including Physical, Data Link, Network, Transport, Session, Presentation, and Application. For the purposes of this training session, we used the TCP/IP model, which we find is simpler, and is better for implementing IP-based controllers. The TCP/IP model includes Network Access, Internet, Transport, and Application.

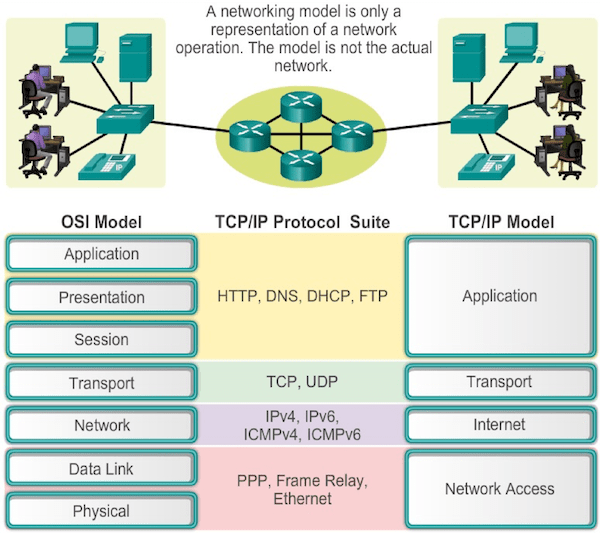

OSI and TCP/IP models compared

Graphic via Distech Controls

Network Access

Network Access functions as the physical layer, defining how devices physically connect and send data through the network. The most common methods are Ethernet and Wi-Fi.

Ethernet connects a number of computer systems to form a local area network, with protocols to control the passing of information and to avoid simultaneous transmission by two or more systems.

Advantages

  • Ethernet ports are common
  • Faster than wireless
  • Typically more secure
  • Greater stability

Disadvantages

  • Expensive to install
  • Not supported by mobile devices

Wi-Fi is the standard wireless local area network (WLAN) technology for connecting different electronic devices to each other and the Internet. Wi-Fi is the wireless version of a wired Ethernet network, and it is commonly deployed alongside it.

Advantages

  • Lowered cost of install
  • Compatible with mobile phones and tablets
  • Better accessibility for technicians and other trades

Disadvantages

  • Slower than wired
  • Subject to interference
  • Typically less secure than wired

VLANs

VLANs (or Virtual Local Area Networks) are designed to help you isolate and segregate your network. You might do this for security purposes, if there are multiple services connected to the same switch. Devices on VLAN-10 in the diagram below, for example, won’t be accessible from VLAN-20 or VLAN-30, or vice versa.

Say you had a lot of security cameras, and you wanted to make sure that only those cameras and the devices that work directly with them were connected. You can segregate your security camera system from unrelated other building automation systems, such as lighting, HVAC, and the like.

VLANs are a secure, efficient way to do all of this, compared with subnets which are internetworked and require individual switches per subnet. In this diagram, we’ve added three different VLANs without adding any additional hardware.

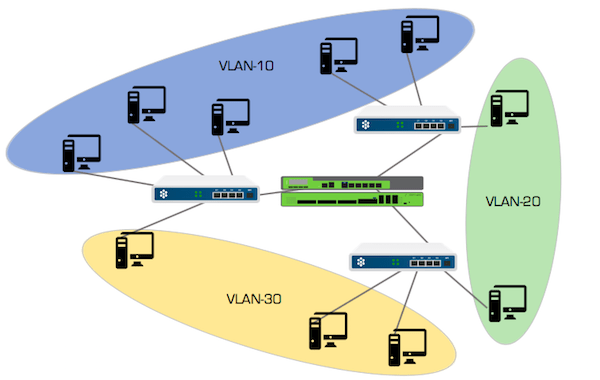

VLANs on a network

Graphic by Optigo Networks.

Internet Layer

The Internet Layer is responsible for packaging data into IP datagrams, and routing those datagrams throughout the network.

A few protocols included at the Internet layer are IP (Internet Protocol), ICMP (Internet Control Message Protocol), ARP (Address Resolution Protocol), RARP (Reverse Address Resolution Protocol), and IGMP (Internet Group Management Protocol).

Some concepts we really dug into on the webinar are Dynamic Host Configuration Protocol (DHCP), subnets, gateways, and Domain Name System (DNS).

1) DHCP is a client/server protocol that automatically provides an IP host with its IP address, as well as other configuration information like the subnet mask and default gateway.

2) Subnets are logical subdivisions of an IP network. The act of dividing a network into two or more networks is called subnetting. A subnet is basically a smaller network within a larger one. With subnets, we can control how much of the network sees our broadcast traffic.

3) Gateways are routers, by definition. Typically in a TCP/IP network, nodes such as servers, workstations, and network devices have a defined default route setting pointing to the default gateway. This defines where to send packets for IP addresses if they can’t determine a specific route.

4) DNS is the Internet's system for converting alphabetic names into numeric IP addresses. When a web address (URL) is typed into a browser, DNS servers return the IP address of the web server associated with that name.

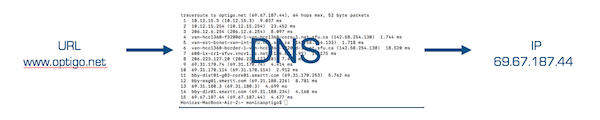

Domain Name System (DNS) returning an IP address for a URL

Graphic by Optigo Networks.

Transport Layer

The Transport Layer is like a “language,” defining what protocols the devices on a network will “speak” with one another. There are lots of protocols, but the two you’ll most often work with on IP-based controllers are the Transmission Control Protocol (TCP) and the User Datagram Protocol (UDP).

TCP is considered a reliable transmission protocol because it re-orders unordered segments, and it will re-send any data that gets lost in the network. TCP has significantly more overhead than UDP, though, and does not allow for “one-to-many” messages.

UDP allows for multi-cast and is typically faster than TCP with less delay, assuming ideal network conditions. UDP is not considered reliable, though, since it does not typically make use of acknowledgements, retransmission of missing packets, or timeouts.

Application Layer

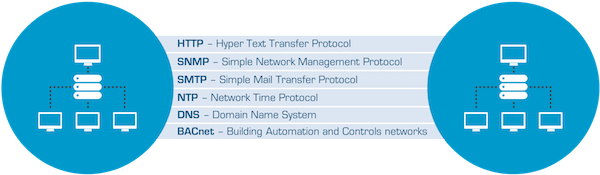

The Application Layer provides network services to applications. This is the layer that most people are familiar with, containing high-level protocols like HTTP, SNMP, SMTP, NTP, DNS, and BACnet. An easier way to understand the Application Layer is with another analogy: if the Transport Layer is like the “language” on a network, the Application Layer is the subject that’s being discussed.

Application Protocols include HTTP, SNMP, SMTP, NTP, DNS, BACnet

Graphic via Distech Controls


We hope you enjoyed this introductory webinar! Be sure to check out our deep dives on Network Access, Internet, Transport and Application, and Designing a Network with Distech Controls’ ECLYPSE and Optigo Connect.
